OUR ADVICE FROM RADIUM:
KEEP CURRENT.
The classic fluorescent tubes are dead. But your luminaires are far from that.
Give your luminaires an upgrade with Radium LED Neo tubes.
For warehouses, production halls or even office spaces, the classic T5 and T8 fluorescent tubes have been standard for a long time. With Radium LED Neo, a new product concept is now on the market. This gives your existing luminaires the chance to get a simple upgrade. Which is smart, efficient and environmentally friendly.
Disposing of existing, functional luminaires completely would be costly and unsustainable. With the Radium LED Neo, you can achieve possible efficiency targets of many luminaires equally – and with less waste:
- Increase in efficiency: up to 192 lm/W
- Super bright: up to 6,200 lm per lamp
- Extremely long service life: up to 100,000h L70B10
- Future-proof by DALI control
- TÜV certified
- Flicker-free
- Dimmable
- Suitable for Emergency power
- Inexpensive
- 5 years guarantee
RADIUM LED NEO
ARE COMPATIBLE.
Radium LED Neo fit into all standard G5 or G13 lamp holders and match the classic dimensions of a T5 or T8 fluorescent tube. To convert to LED Neo, just replace the lamp and replace the ECG or CCG 1:1 with the LED driver. The LED tube and the LED driver are optimally tuned with each other, so that no compatibility tests are necessary after the conversion.
DARE THE JUMP INTO THE FUTURE WITH EXISTING LUMINAIRES.
The Radium LED Neo transform your existing luminaires into modern lighting systems that are super bright, flicker-free, dimmable, suitable for emergency power supply and DALI-capable.
The highlight: an external LED driver that equips every Radium LED Neo with functions that characterize modern lighting management today. This makes Radium LED Neo a lot superior to all previous retrofit solutions.
THE DALI CAPABILITY ENABLES FURTHER OPTIMIZATION VIA A LIGHTING MANAGEMENT SYSTEM OR CENTRAL BUILDING CONTROL.
By using our DALI 2 drivers, you have all the possibilities that DALI offers, including integration into an IoT network. Whether the lamps should shine brighter or darker in the future can, however, also be set directly via dip switches on the respective driver – during installation or even later.
BRIGHTER – DARKER – DIMMABLE – ENJOY THE NEW POSSIBILITIES.
The LED Neo tubes luminous flux can be adjusted via control current. Specifically: With the appropriate ballast, the Radium LED Neo can be set to a desired value via the operating current (constant current). This way, it emits the right brightness for every "visual task".

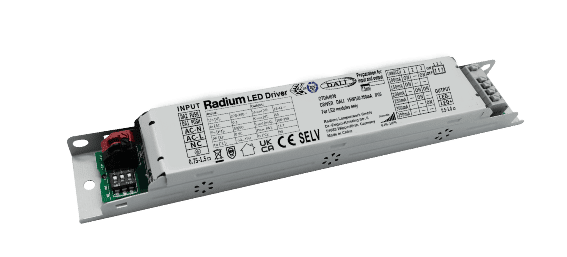

THE SECRET OF MANY FUNCTIONS:
THE EXTERNAL LED DRIVER.
The Radium LED drivers replace existing ECGs/CCGs 1:1. Ideal for quickly connecting your own lighting system to the future. Up to four Radium LED T5 or T8 Neo can be connected per LED driver.
SUITABLE FOR EMERGENCY POWER.
Unlike ordinary LED tubes, Radium LED Neo are even suitable for installation in emergency power systems with the suitable driver. Radium drivers are DC-capable. This means that your new Radium LED Neo will continue to shine with the same brightness even if the power supply is switched to DC in the event of a fault. It is also possible to combine emergency current-capable LED drivers from other manufacturers with the LED Neo.
SAFETY WITH LETTER AND SEAL.
Whether fire protection or building insurance – there are many players who look critically at innovations. With the ZVEI white paper, we are legally on the safe side when converting to Neo. Because we have tested the combination of LED driver and LED tube in detail and the responsible master electrician certifies the safe and standard-compliant operation of the converted luminaire with LED Neo by specialist contractor declaration.
We will be happy to assist you with your projects.
Contact us directly:
✉ customerservice@radium.de ☎ +49 (0) 2267 81-493
UNIQUE PRODUCT CONCEPT:
ROBUST, EXTERNAL RADIUM DRIVER INSTEAD OF INTEGRATED MINI-DRIVER.

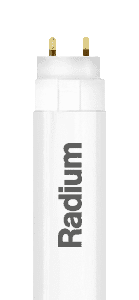

RADIUM LED NEO TUBES
- Very high efficiency up to 192 lm/W
- High luminous flux up to 6,200 lm
- Flicker-free lighting
RADIUM LED DRIVER
- One Radium LED Driver can drive up to 4 Radium LED T5 or T8 Neo tubes
- External driver creates space for high quality technical components that are not feasible in mini driver format
- High reliability
- No compatibility check
SAFE IS SAFE: TÜV AND ENEC CERTIFIED.
Since 1904 Radium stands for safety and high quality made in Germany. That is why the Radium LED T8 Neo have also been ENEC certified by TÜV Süd. In addition, the safety extra-low voltage (SELV) ensures high operational safety.

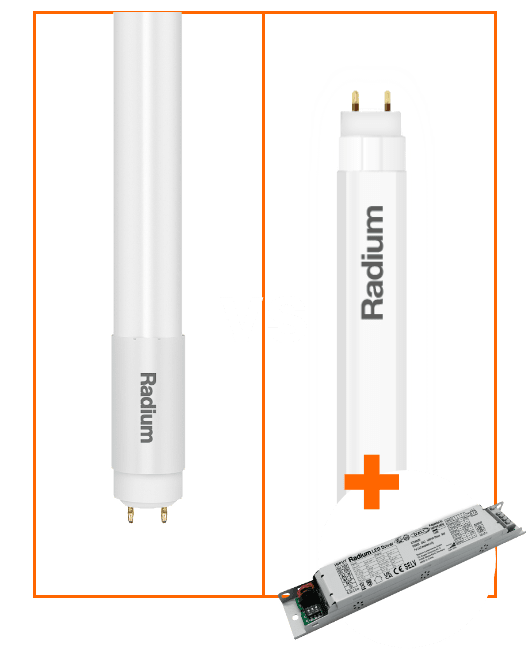

CONVINCING EVEN IN COMPARISON WITH CLASSIC RETROFIT SOLUTIONS.
RETROFIT SOLUTIONS
- Many different lamp types for a wide range of applications
- Long service life (30,000-70,000 h)
- Thermal compatibility can be checked with measurement of the Tc point
- Compatibility must be checked for high frequency ballasts (ECG).
- Functionality must be built in tube.

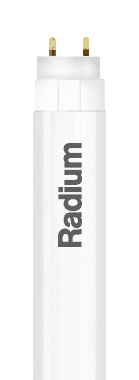

RADIUM LED NEO TUBES
- Greater flexibility due to variable luminous fluxes
- Long service life: 70,000 h L80B10
/ 100,000 h L70B50 - High reliability due to separation of power electronics
- Compatibility guaranteed (no compatibility or dimmer lists)
- Higher functionality (dimmable, emergency power) and modularity.
- Environmentally materials
- Storage and portfolio complexity is significantly reduced (function is in modular design)

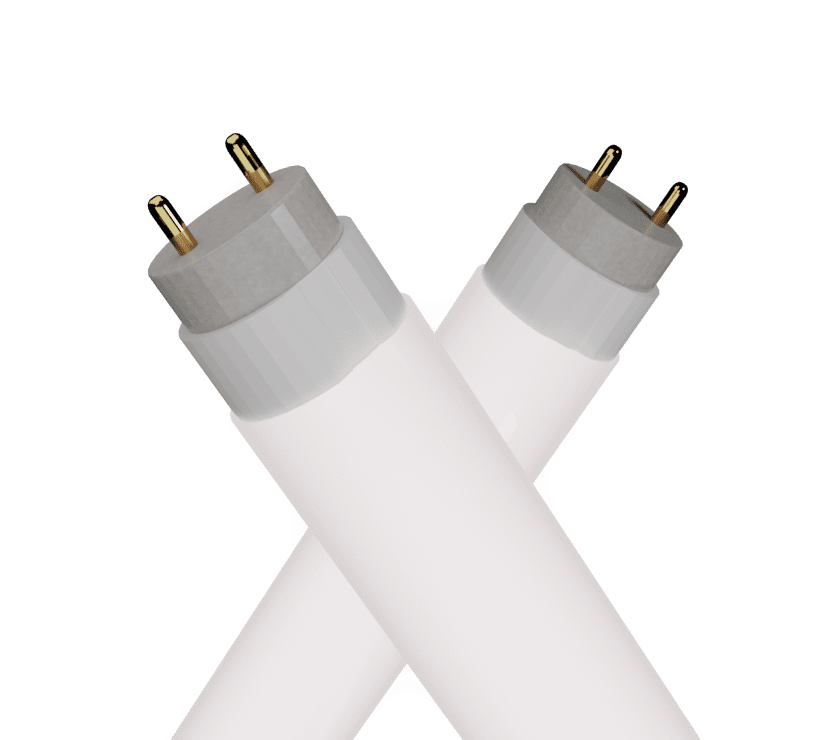

ONE LAMP FOR EVERYTHING:
ADJUSTABLE LUMINOUS FLUX, MODULAR FUNCTIONALITY.
Cost consciousness, efficiency and resource conservation are practically woven into the DNA of the Radium LED Neo tubes. Witness the many advantages:
OPTIMIZED
STORAGE:
Thanks to the modular system of driver and lamp, as well as the possibility of adjusting the luminous flux as needed, the Radium LED Neo tubes are also highly efficient in storage.
SUSTAINABLE AND RESOURCE-SAVING:
Since existing luminaires can continue to be used and can even be modernized through the conversion
SHORT DELIVERY TIME:
While ordering new LED luminaires often involves long waiting times, you can quickly convert your existing luminaires to Radium LED Neo.
LOW EFFORT – BIG EFFECT.
Converting to Radium LED Neo is as easy as replacing a defective ballast in classic luminaires. Just install the new driver, screw in the LED Neo – done!
Big advantage: With many modern LED alternatives, luminaire and light source are one. This means that every defect means a complete replacement of the luminaire and thus new assembly effort and new electrical waste. The widespread T5 and T8 standard certainly also allows you to choose your light source freely in the long term.
SUSTAINABILITY BY DESIGN:
By choosing Radium LED Neo, you score twice in terms of sustainability:
A
Save around 2,200 kg of waste, as the luminaires are simply reused and even technically future-proofed.
Around 2,200 kg less waste per 1,000 points of light.
B
With other luminaire suppliers, the lamp and luminaire have to be replaced in the event of a defect because the two are inseparably connected or replacing the module is too time-consuming. With Radium LED Neo, on the other hand, it is sufficient to replace only the component that is not working: LED tube, driver or luminaire. As a result, even at the end of the service life, the amount of waste is low. Compared to replacing a luminaire insert, you again save about 700 kg of waste for 1,000 fixtures.
HIGH OPERATIONAL SAFETY DUE TO GLASS AND SHATTER PROTECTION.

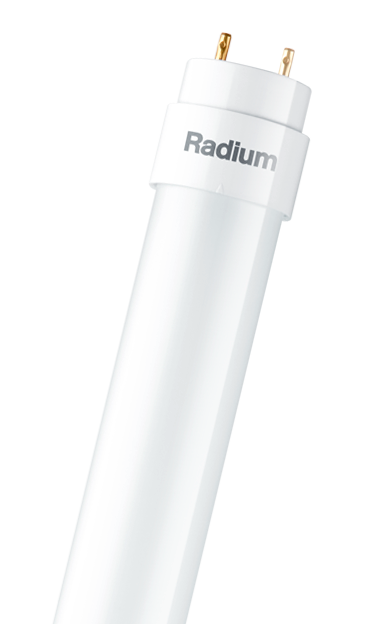

Radium LED Neo tubes are made of a long-proven material: glass. While typical LED tubes sag quickly or bend when exposed to heat, a glass bulb remains rigid for a clear appearance. For high protection during transport and operation, a shatter guard secures all LED T8 Neo glass tubes. Thus, even if the bulb is broken, no splinters escape that could cause injury or contaminate production. This makes the lamps even suitable for use in the food industry (IFS).
KEEP COOL, SAVE SMART.
With the conversion to Radium LED Neo you invest little and save a lot. Because all your functional T5 or T8 luminaires can continue to be used. Just out of curiosity, you might want to calculate how much it would cost to replace all the luminaires, including installation and lamps. The costs for the environment are also significantly lower when converting to Radium LED Neo.
REPLACING FLUORESCENT LAMPS PAYS FOR ITSELF AFTER ONLY 16 MONTHS.
COMPARED WITH LED LUMINAIRE, THE INVESTMENT COST OF LED T8 NEO IS MORE THAN 60% LOWER.
| Options | LED T8 Neo | LED luminaires |
| Number of luminaires (pcs) | 40 | 40 |
| Number of lamps per luminaire (pcs) | 2 | 1 |
| Type of lamp | LED T8 Neo | Fixed LED module |
| Operating device | LED Driver | LED driver |
| Changeover time per luminaire (min) | 12 | 20 |
| Invest per luminaire DALI (RRP) | 110.70 € | 304.90 € |
| Total invest costs | 4,988.00 € | 13,129.33 € |
RADIUM LED NEO
USE THE LED ADVANTAGE AGAINST HIGH ELECTRICITY COSTS.
With the same luminous flux, Radium LED Neo tubes consume about 50% less energy, in some luminaires it even saves up to 80% compared to conventional fluorescent tubes. In addition, power consumption can be further reduced with Radium LED Neo through efficient lighting management – via DALI, Push&DIM or setting the luminous flux directly on the driver.
RADIUM LED NEO LAST LONGER:
REDUCE MAINTANANCE INTERVALS.
With up to 100,000 hours of light, the LED T8 Neo can illuminate rooms non-stop for about 10 years. The drivers have the same service life. Radium gives a 5-year guarantee on drivers and LED tubes.
TECHNICAL SPECIFICATIONS CAN BE FOUND IN OUR PRODUCT CATALOG.
Keep current now and make an appointment for a personal consultation.
