Radium Primary Material.
Manufacturing and processing of high-purity inorganic chemicals.

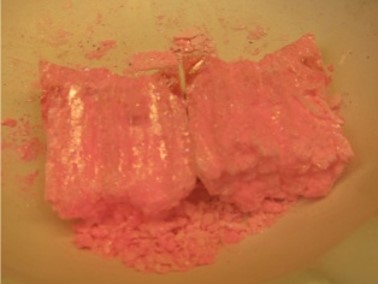

Synthesis of high purity metal halides
High-quality metal halides as pure substances from our own synthesis, which contain an extremely low level of impurities from oxygen, moisture and foreign metals.
The delivery is possible in various forms, from coarse granules to finely ground powder to spherical particles in various diameters (depending on the material).
The purity level is proven by chemical and spectroscopic analysis in our own laboratory and certified accordingly.
Multi-component mixture of metal halides
Production of mixtures according to given recipes consisting of 2-10 different metal halides.

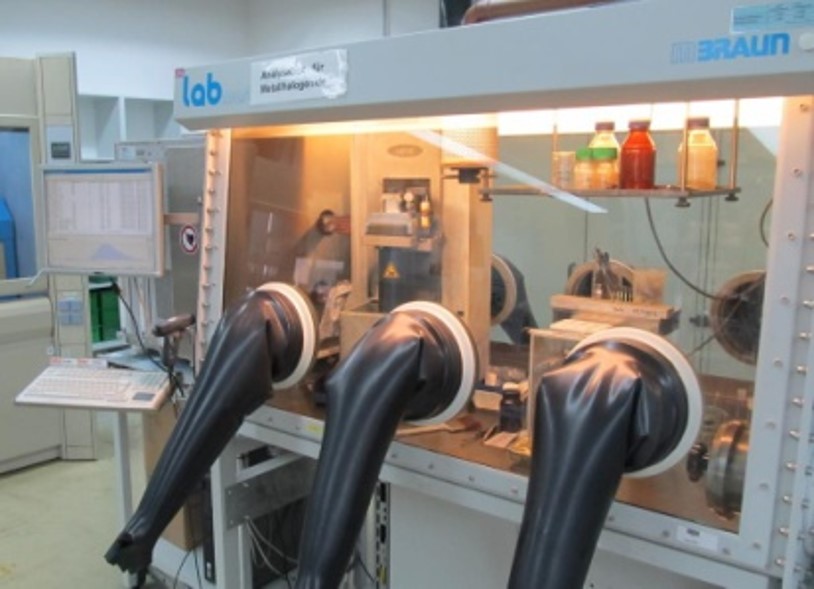

All production steps are carried out in glove boxes filled with inert gas protecting the product.
Proof of the correct composition and the degree of purity is provided by chemical and spectroscopic analysis in our own laboratory and certified accordingly.
Delivery in different variations according to customer requirements:

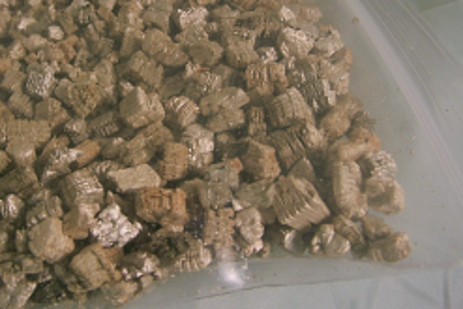

Granules

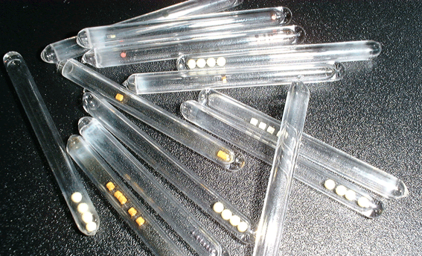

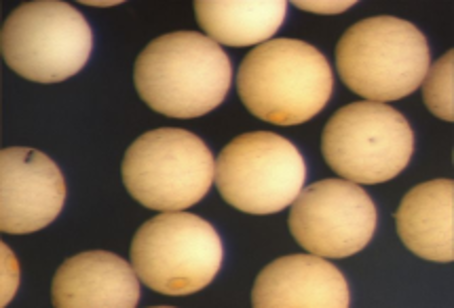

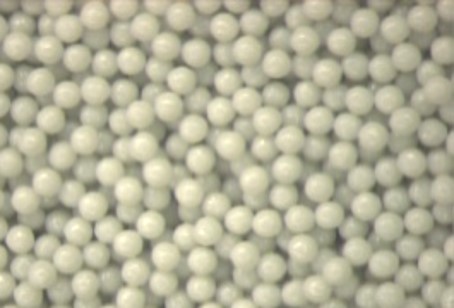

Bullets
in sizes from 100-400µm; packaging units from 20mg - 4g

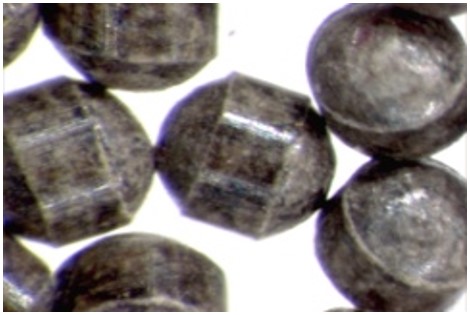

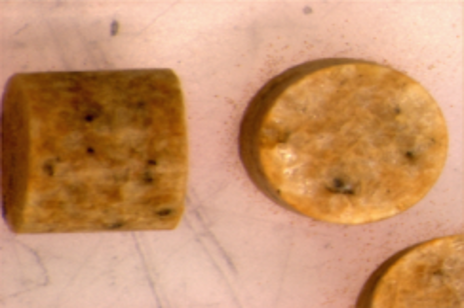

Press Bodys
in sizes from 1-5mg; packaging units 1-1.000 pieces
More options
it is also possible to combine several mixtures or basic substances in one package.
Talk to us, we would be happy to help you with the decision which product may be best for you.
We'd be happy to provide you with a full list of metal halides.

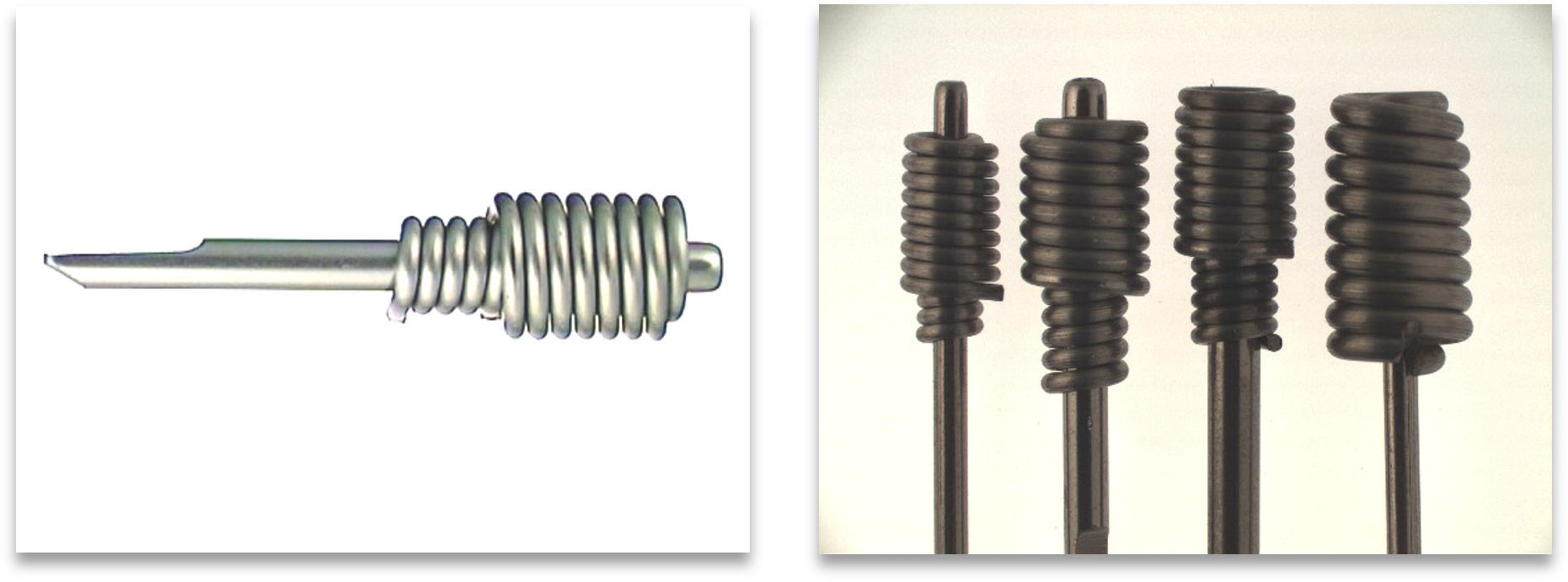

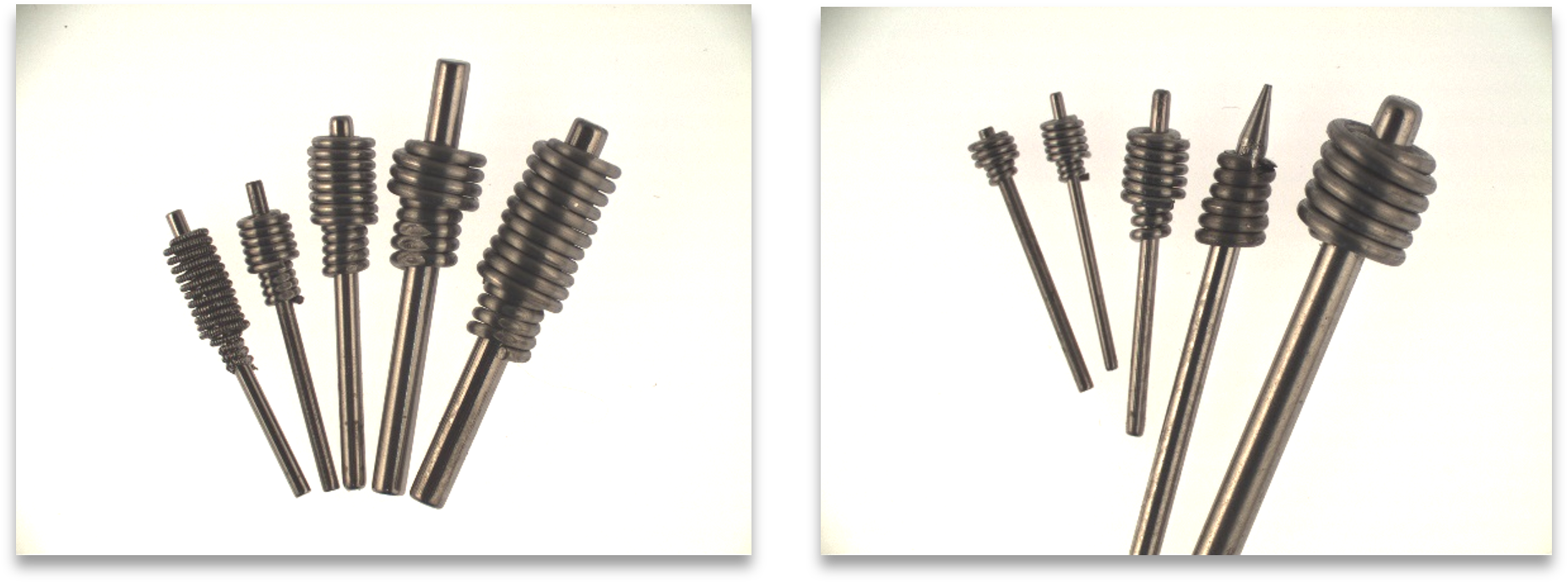

Manufacturing of Electrodes at Radium.

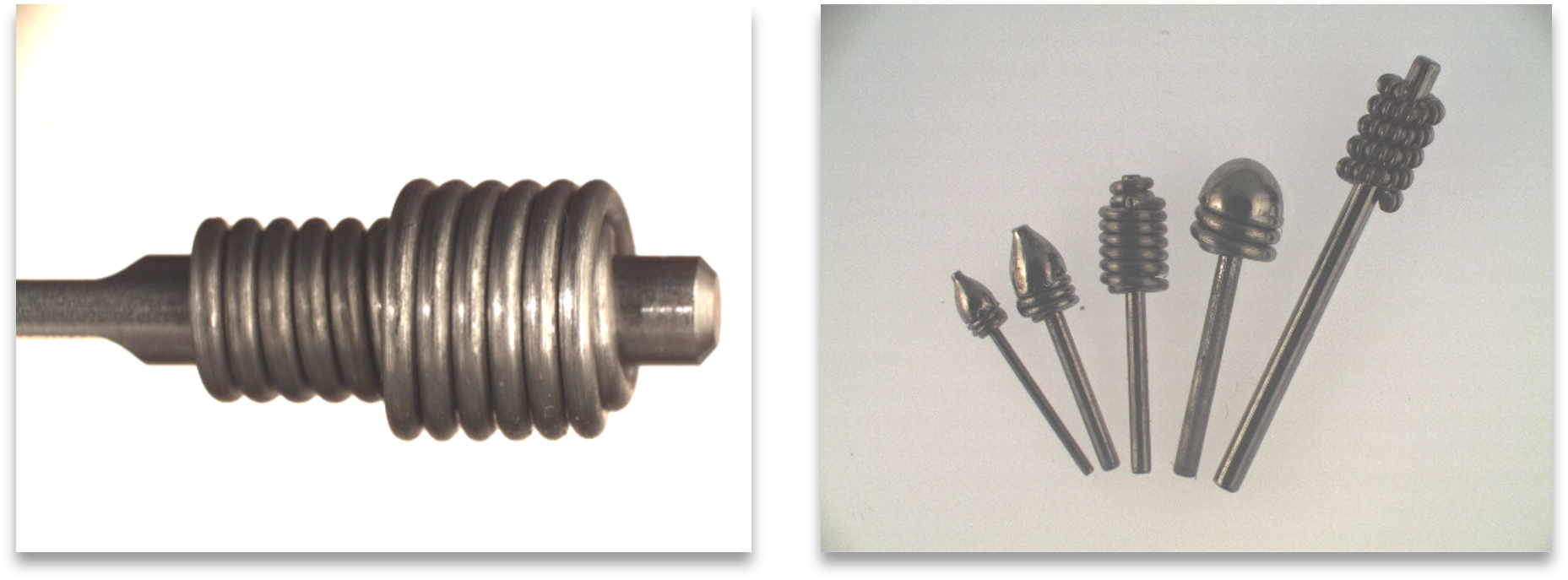

Types of Electrodes.
Electrodes for NAV-Lamps
Models: pasted without emitter or pasted with emitter
Electrodes for HQ/HQI Lamps
Models: Coil welded or pressed in with a pin
Electrodes für high wattage HQI/HMI Lamps
Models: with or without bevel
Electrodes for special Lamps
Models: with or without laser forming

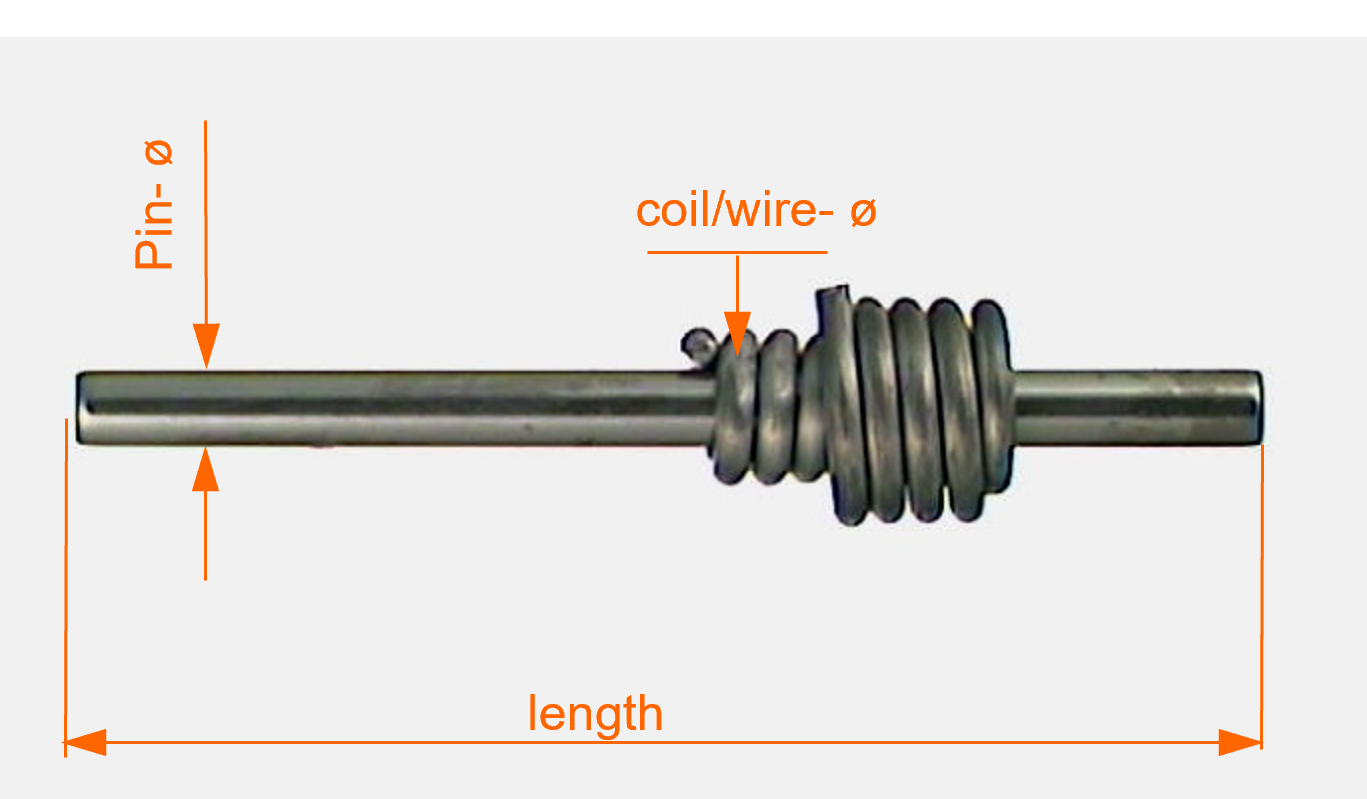

Dimensions and Materials.
Pin:
Diameter: 0.30 mm – 3.0 mm
Length: 5.40 mm – 27 mm
Coil/Wire:
Diameter: 0.17 mm – 1.0 mm or winding wire
Models of Tungsten Material.
BSD: W-Material, doped with potassium, aluminium, silicon
- K: W-Material, undoped
- KDS: W-Material high purity, undoped
- G ..: W-Material, doped with ThO2 1.8% oder 2%
Tungsten purity at all models better than > 99.9%
Cleaning and Delivery.
Cleaning process in the annealing furnace
- Hydrogen annealing, moist until 1,500°C
- Hydrogen annealing, dry until 2,500°C
- Hydrogen/ Forming gas annealing at 1,500°C
- High vacuum annealing until 1,900°C

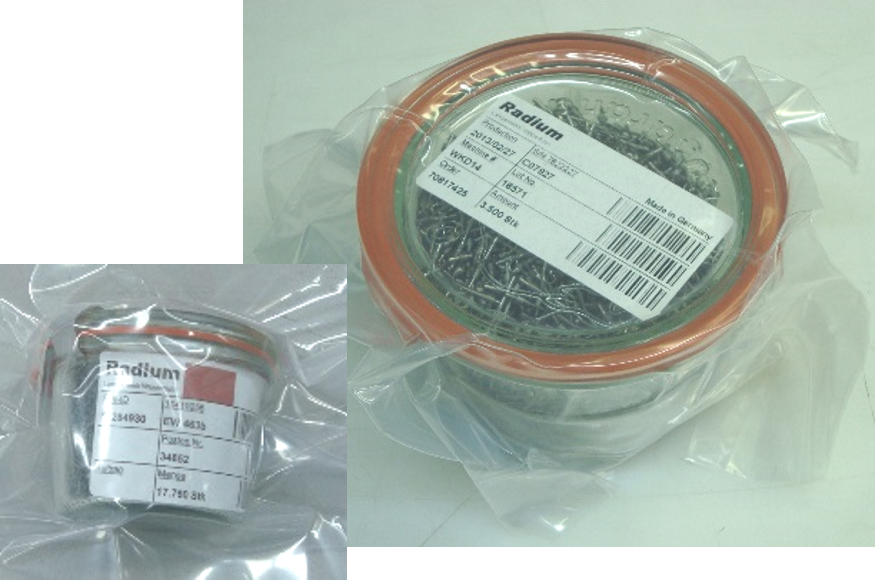

Delivery of the "ready to use" electrodes
- vacuum packed in a glass
- with quality protocols

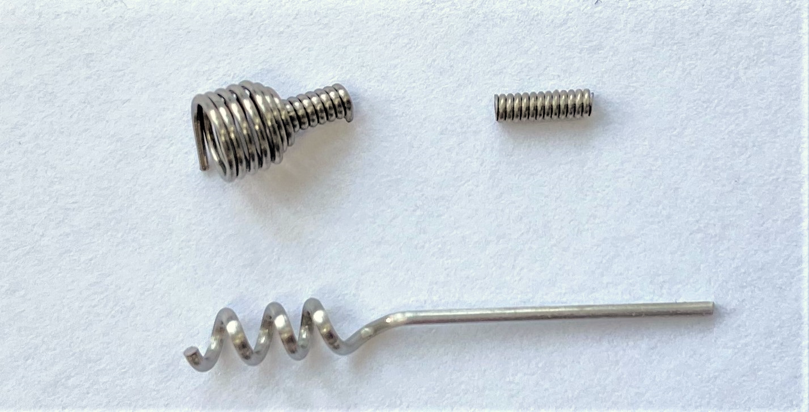

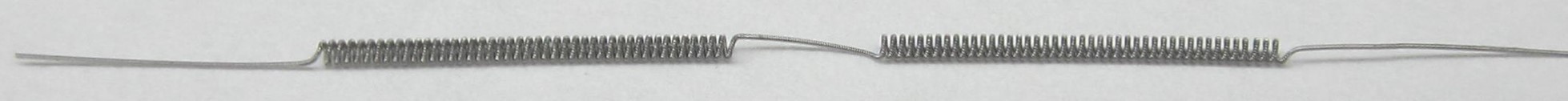

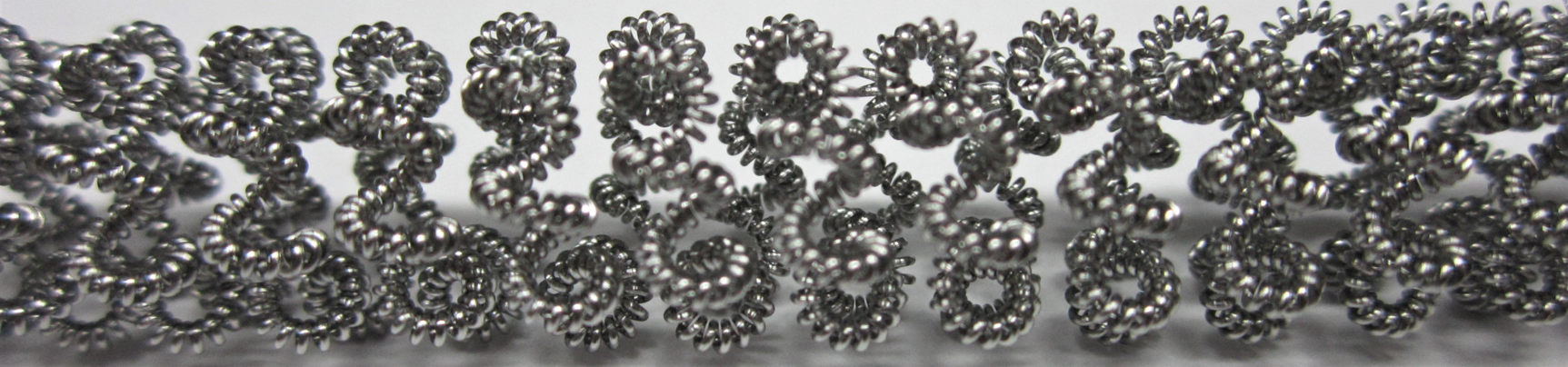

Manufacturing of Filament coils.
Examples of our product portfolio.

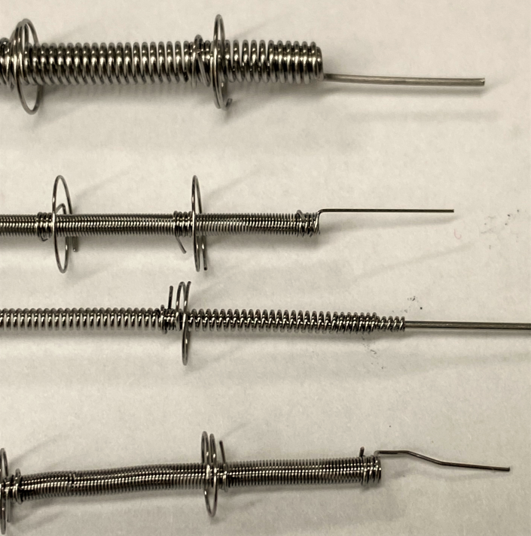

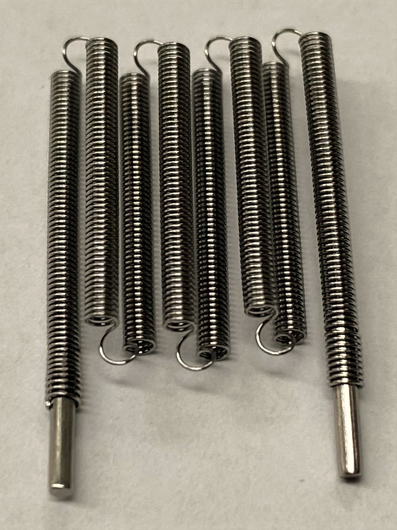

- Single-coil filaments

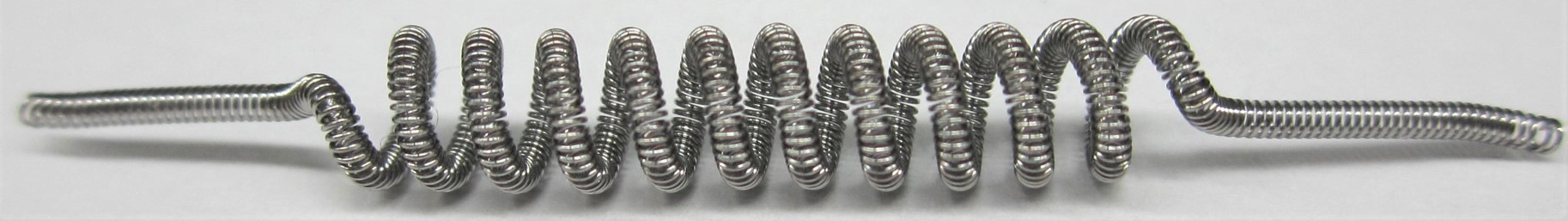

- Double-coil filaments
- Tripple-coil filaments

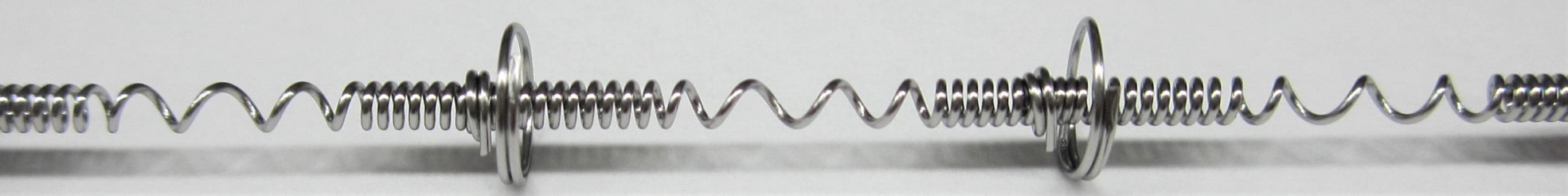

curved & segmented
Axial, radial, etc.
Dimensions and Materials.
Wire dimensions Mo core filament
Tungsten-wire diameter: 17µm - 405µm
Mo core wire: 30µm - 1480µm
Wire dimensions machine core filament
Tungsten-Wire diameter: 85µm - 580µm
Mandrel: 740µm - 4000µm
Material Types
Tungsten

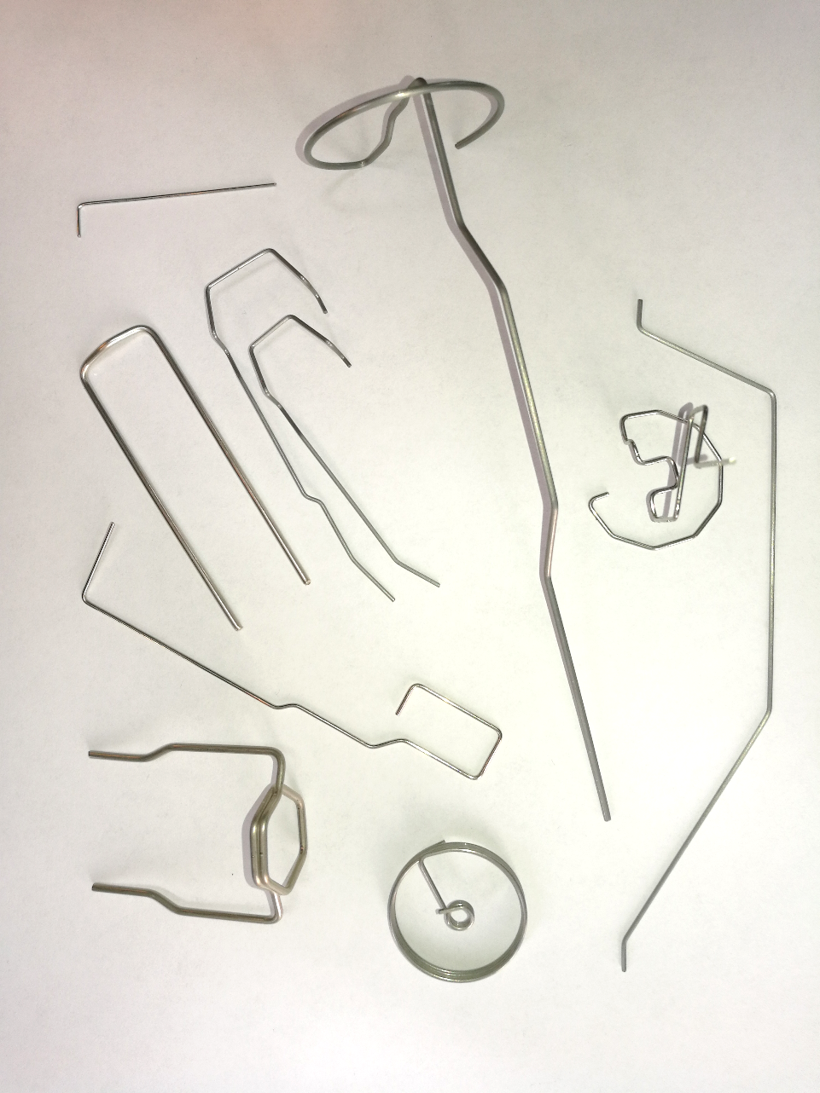

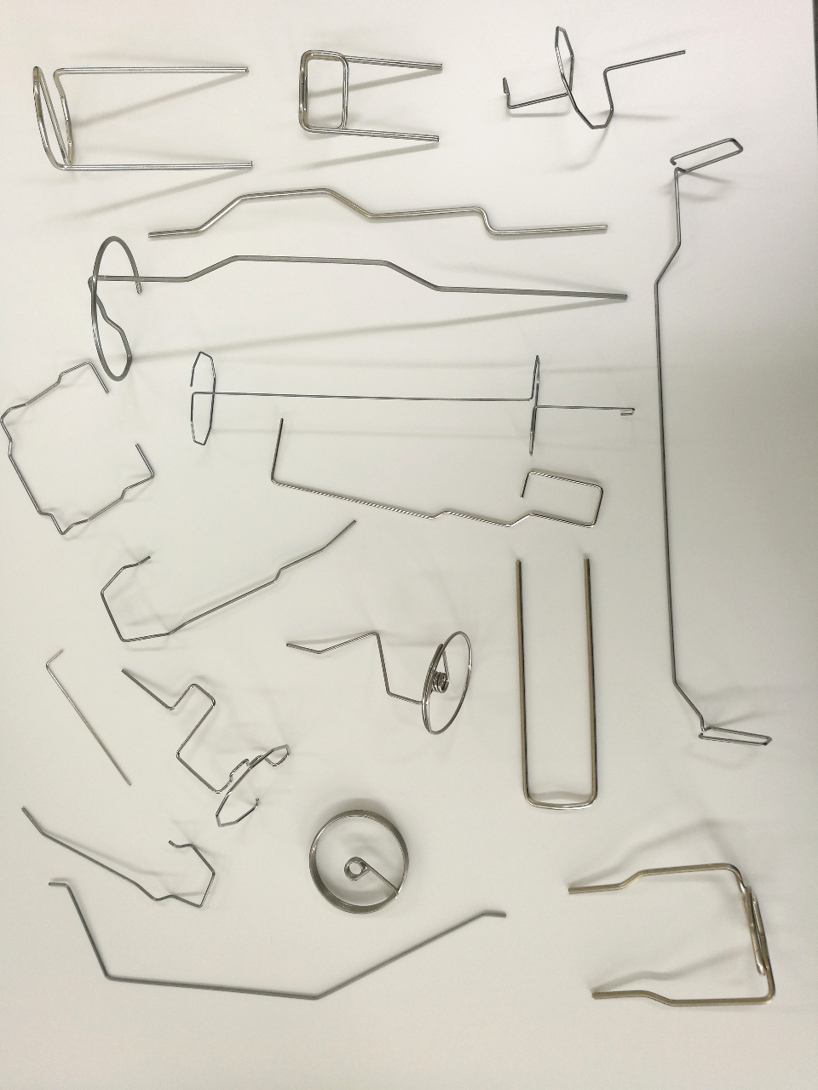

Bent wire parts of Radium.
Dimensions and Material.
Wire dimensions
Wire diameter: from approx. 0.6 mm – approx. 1.8 mm
Dimensions of the bent wire parts vary depending on the design.
Material Types
- Molybdenum
- Nickel (also NiMn2)
- Spring steel
- Niobium (also NbZr2)
- NPS (nickel-plated steel)
- ...
Cleaning and Delivery.
Possible cleaning methods adapted to requirements and material
- Hydrogen annealing, moist until 1,500°C
- Hydrogen annealing, dry until 2,500°C
- High vacuum annealing until 1,900°C
- Ultrasonic bath cleaning (e.g. with Ethanol, Acetone)

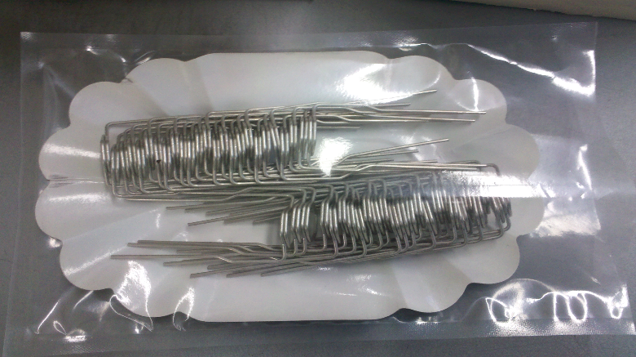

Delivery

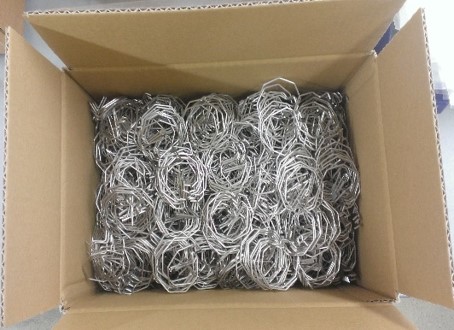

- packed in a cardbox, as bulk goods
- heat seal in bags
