Transform your home into a lighting paradise with LED Strips. Whether you want soft accents or colourful highlights: With the LED Strips from Radium, which can be flexibly cut to measure and combined with a wide range of accessories, you can light up every room individually. The high-quality Easy Connect system is ready to plug in and therefore easy to install. Train the Zigbee components to your smart home system and control your light via app. By the way: You can also change over and expand your project later. Create now your own customised modular system for your personal lighting experience.
Step by Step to an individuell lighting experience.

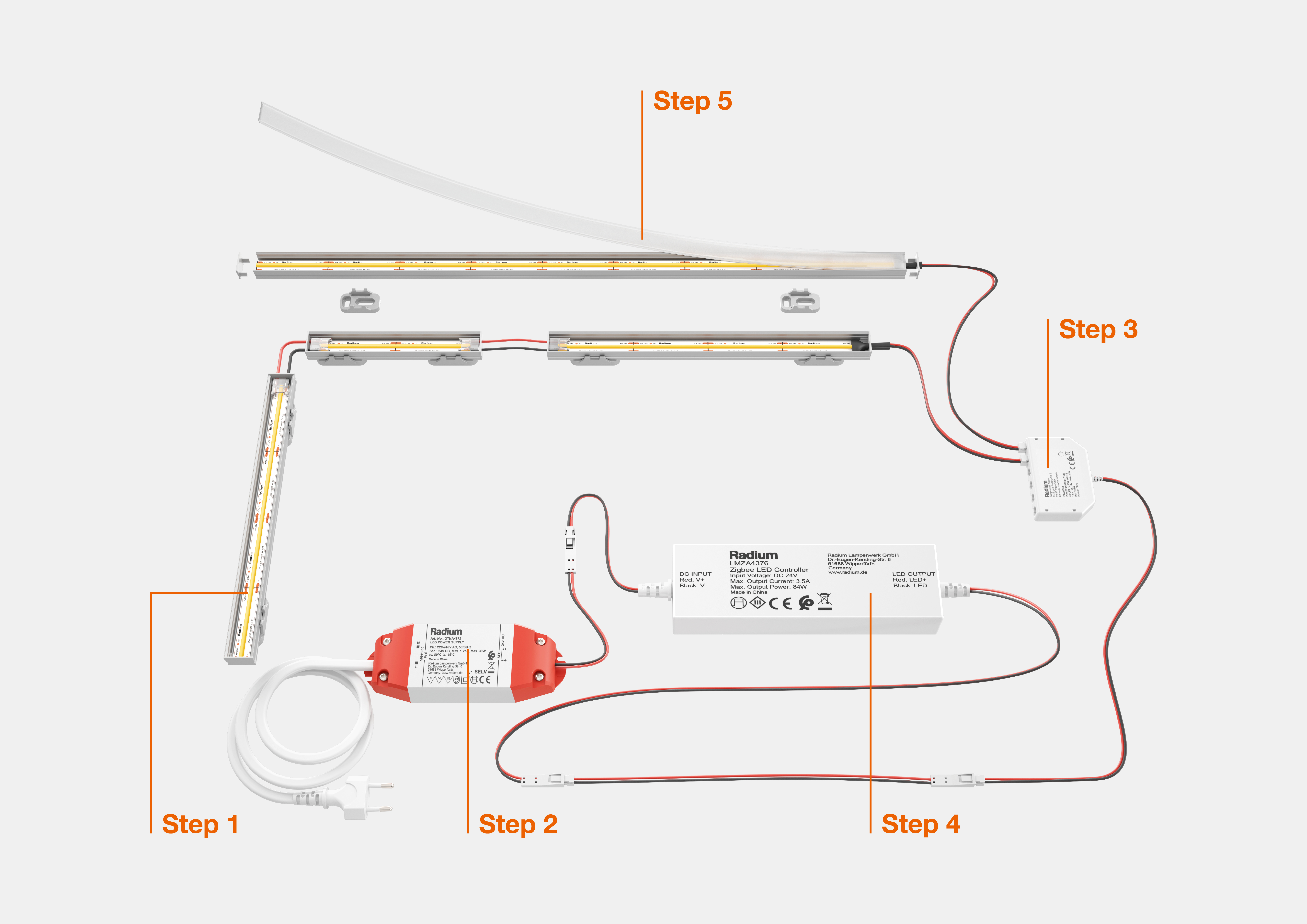

How to select your components.
Step 1
Select an LED Strip. If you decide to use several strips, add their power together.
Example: 15W + 30W + 15W = 60W
Step 2
Select the appropriate driver based on the total power of the LED Strip chosen.
Example: ✗30W ✓60W ✗120W
Step 3
If you want to use more than one LED Strip on one driver, you will need a distributor.
Hint: You can also use the distributor to connect several controllers to one driver if the individual strips should be dimmed differently.
Step 4
Add a controller to dim the LED Strips – via remote control, app or smart home assistant. For white light, use the CONTROLLER ZGB WHITE and for colored light the CONTROLLER ZGB RGBW.
Step 5
For every application we have the right profile set consisting of profile, cover, end caps and brackets including screws.
The profile and cover provide protection for the LEDs. The cover also ensures homogeneous light and less glare.

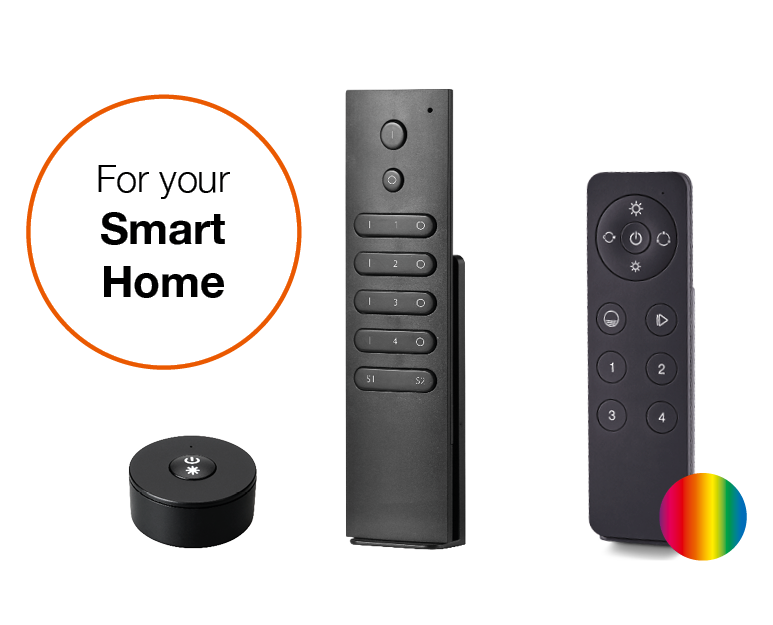

Make it dimmable!
Lighting control makes your home smart!
With the Zigbee controller, you can control your LED Strips easily via remote control. If you have a suitable Zigbee bridge, controller and remote control can be trained to your smart home system. You can also switch and dim your light via app or voice control and call up your individually saved light scenes.
Which light color is the right one for my project?
For different lighting applications we usually consciously choose certain color temperatures (unit: Kelvin (K)). For example, we use warm, cosy light (e.g. 2700 K) for living rooms and bedrooms, whereas cool, vitalising light (e.g. 4000 K) for workspaces and kitchens.
How do I know how bright an LED Strip is?
ou can recognise the brightness of light sources by their luminous flux (lumen (lm) or, in the case of LED Strips, lumen per metre (lm/m)). The higher the value, the brighter the light. How much light is needed depends on the visual task: For decorative light, for example, 500 lm/m can be used, for general room lighting rather 1500 lm/m.
1. Ambient lighting
for orientation and showcase lighting or indirect light sources
LED Strip 500ZP (1m/3m/5m/10m)
- Low brightness for soft lighting
- Warm white (2700 K) or cool white light (4000 K)
2 Additional lighting
for kitchen base units, indirect light sources or light coves
LED Strip 1000ZP (1m/3m/5m/10m)
- Medium brightness for decorative light or auxiliary lighting
- Warm white (2700 K) or cool white light (4000 K)
3. General lighting
for living spaces, offices, garages or individual lighting
LED Strip 1500 (1m/3m/5m)
- High brightness for general room lighting
- Warm white (2700 K) or cool white light (4000 K)
4. WarmDIM lighting
for bedrooms and living rooms, bars, event and relaxation rooms
LED Strip 900WD (1m/3m/5m)
- Dynamic light: changes automatically from warm white (3000 K) to super warm white (1900 K) when dimmed
5. RGBWW lighting
for living and event rooms, bars, young persons and gaming rooms
LED Strip 500ZP RGBWW (1m/3m/5m/10m)
- Combining colored light and pure, warm white light (2700 K)
Keep your lighting grounded:
Aluminium profiles for LED Strips.
The optimum solution for every idea.
Radium offers a large selection of aluminium profile sets for LED Strips to individually illuminate any room. Whether simple surface-mounted profiles, corner profiles, floor profiles, drywall profiles or slat profiles for acoustic panels: the simple, modern design makes every lighting solution an eye-catcher.
Profiles ensure protection and durability.
Radium profile sets safely dissipate the heat from the LEDs and protect the strips from dust. This ensures a safe and long-lasting lighting solution. That‘s why we recommend to use the LED Strips in combination with Radium profiles.
The sets are so easy to install.
All LED strips are equipped with a self-adhesive tape and can be glued into the profile this way. The cover and end caps are then fitted. The brackets supplied with the set are screwed on at the desired place. The profile set is then simply clicked into it. Alternatively, a centring groove in the profile enables to drill precisely the holes in order to fix the profile with screws directly without using the brackets, before you glue in the LED Strip.
Hint:
You can cut the profile set easily to an exact fit with a hacksaw. This avoids dark spots if your LED Strip does not fit exactly into the profile. Take care to ensure that your profile is 1 cm longer than your LED Strip, as the connection cable needs a little space in the profile.
How about a pendant light?
Would you like to illuminate your dining table, kitchen island or desk? Then simply add a wire suspension to your selected LED Strip and your profile set and hang up your customized LED Strip system.
Attachment profile set (1m/2m)
SMALL U FLAT 17/10 black
with black cover
Also available with frosted white cover
FXZA4548 (1m) FXZA4549 (2m)
Drywall corner profile set (2m)
SMALL CORNER DC 38/36 grey
with frosted white cover
FXZA4573 (2m)
Attachment profile set (1m/2m)
SMALL U FLAT 17/10 grey
with frosted white cover
FXZA4540 (1m) FXZA4541 (2m)
Drywall corner profile set (2m)
SMALL CORNER DC 26/30 grey
with frosted white cover
FXZA4572 (2m)
Attachment profile set (1m/2m)
SMALL U 17/16 grey
with frosted white cover
Also available in black
FXZA4550 (1m) FXZA4551 (2m)
Drywall wing profile set (1m/2m)
SMALL WING DC 56/13 grey
with frosted white cover
FXZA4564 (1m) FXZA4565 (2m)
Attachment profile set (1m/2m)
SMALL U FLAT SQUARE 17/18 grey
with high frosted white cover
Also available in black
FXZA4542 (1m) FXZA4543 (2m)
Built-in wing profile set (1m/2m)
SMALL WING 25/13 grey
with frosted white cover
Spring brackets optionally available
Also available in black and white
FXZA4556 (1m) FXZA4557 (2m)
Corner profile set (1m/2m)
SMALL CORNER 23/23 grey
with frosted white cover
FXZA4554 (1m) FXZA4555 (2m)
Floor profile set (1m/2m)
SMALL U FLOOR 21/27 grey
with frosted white cover
Loadable up to 500 kg
FXZA4566 (1m) FXZA4567 (2m)
Slat profile set (1m/2m)
XSMALL U 12/12 black
with black cover
Also available with frosted white cover
FXZA4570 (1m) FXZA4571 (2m)
Floor wing profile set (1m/2m)
SMALL W FLOOR 27/11 grey
with frosted white cover
Loadable up to 500 kg
FXZA4568 (1m) FXZA4569 (2m)
Modern lighting accents made easy.
The highlight for your home.

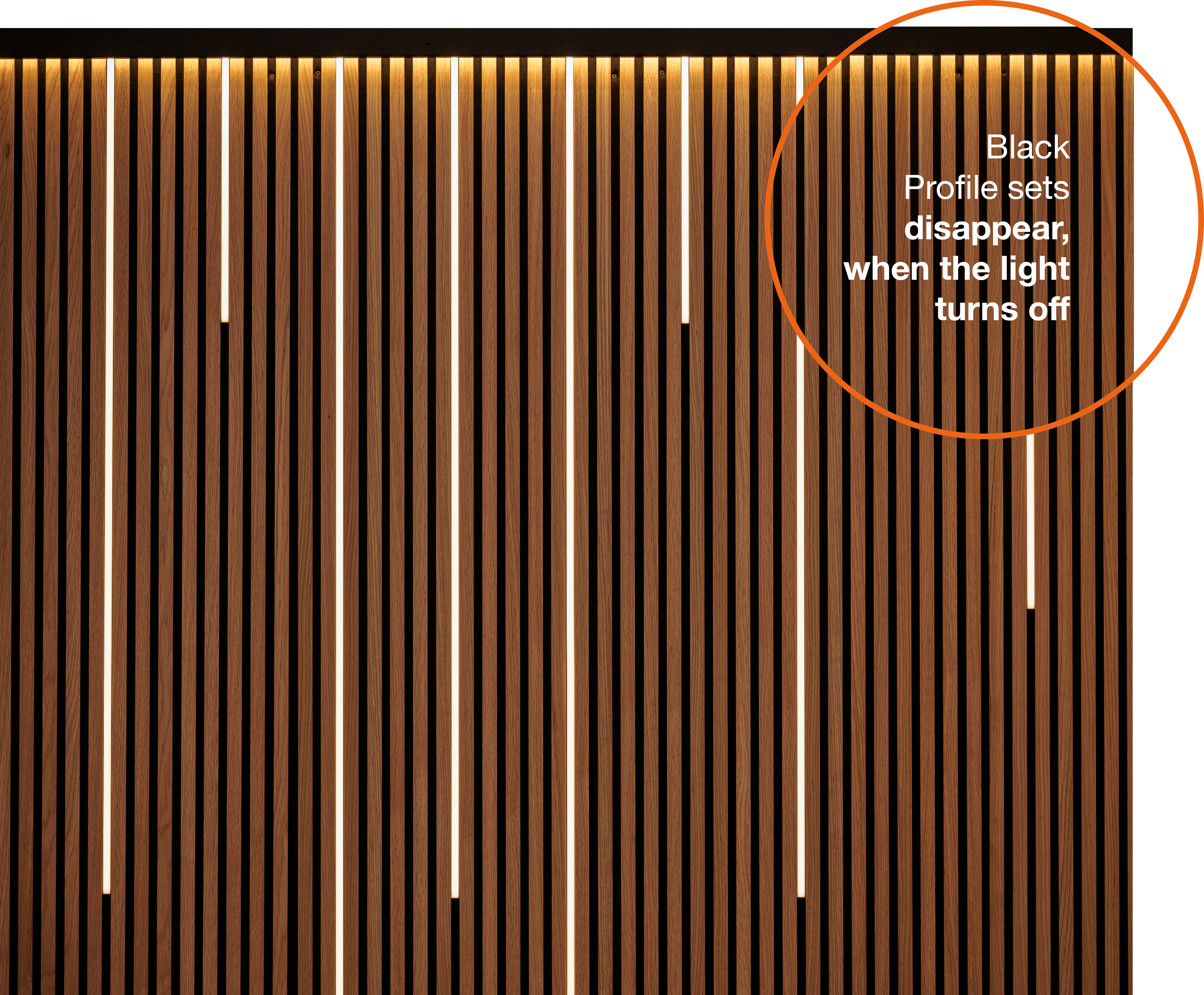

Make your acoustic panels shine!
Give your slatted wall that little bit extra – with cleverly integrated lighting! Thanks to matching profile sets, you can simply click LED Strips into the slats to create individual lighting accents
☑ Simple installation: Glue the LED Strip into the profile set, attach the mounting clips and click into the acoustic panel without tools
☑ Decorative highlights for cosy living rooms, hallways, counters and much more
☑ Individually adaptable for every application
Your room, your light, your favourite place.
Project examples with Radium Easy Connect LED Strips.
Need some inspiration? We‘ll show you how easy it is to implement: Easy Connect LED Strips offer countless design options and you can adapt them precisely to your needs. Here we show you stylish lighting applications as inspiration for your next DIY project. Whether it‘s indirect lighting for your kitchen, an atmospheric bedroom and living room upgrade or cool lighting accents in your ceiling – Easy Connect makes it possible!
The product descriptions on the images will help you find the right items and fill your own shopping cart quickly and easily.
A cozy atmosphere in the bedroom.
WarmDIM lighting for your bed.
1. LED Strip 900WD EH 930-919/24V
2. Driver 60W DC24V
3. Controller ZGB WHITE 84W/24V IP20
4. Distributor 6PORT P2 IP20 WHITE
5. Cable extension 2PIN 2M
6. Remote control REMOTE ZGB DOT 1ZONE
7. Profile set SMALL U F 17/16
Practical lighting for work surfaces
Additional lighting for your kitchen cabinets.
1. LED Strip 1000ZP EH 940/24V
2. Driver 30W DC24V
3. Controller ZGB WHITE 84W/24V IP20
4. Remote control REMOTE ZGB DOT 1ZONE
5. Profile set SMALL CORNER F 23/23 GREY
Tasteful, colored light in the living room.
RGBWW lighting for your screen.
1. LED Strip 500ZP EH RGBWW/24V
2. Driver 60W DC24V
3. Controller ZGB RGBW 84W/24V IP20
4. Distributor 4PORT P3 IP20 RGBW
5. Cable extension RGBW 2M
6. Remote control REMOTE ZGB
A functional eye-catcher in the hallway.
General lighting for your ceiling.
1. LED Strip 1500 EH 940/24V
2. Driver 60W DC24V
3. Controller ZGB WHITE 84W/24V IP20
4. Distributor 6PORT P2 IP20 WHITE
5. Remote control REMOTE ZGB WHITE ZONE
6. Profile set SMALL WING DC F 56/13 GREY
Stylish light for perfect orientation.
Ambient lighting for your staircase.
1. LED Strip 500ZP EH 927/24V
2. Driver 60W DC24V
3. Controller ZGB WHITE 84W/24V IP20
4. Distributor 6PORT P2 IP20 WHITE
5. Cable extension 2PIN 2M
6. Remote control REMOTE ZGB WHITE 4ZONE
7. Profile set SMALL U FLAT F 17/10 1 GREY
Inspire
Shop
Customize
Enjoy
Do you need help choosing a product?
Our checklist will help you!
If you have any further questions, we will be happy to assist you personally. Please contact us.
Do you have questions or need help with your LED strips?
Check out our explanatory videos!
(German only)
For more videos, visit our YouTube channel.
How-to Guide
Pairing a controller with a voice assistant (not in factory settings)
How-to Guide
Connect Radium Dot with any Zigbee-enabled lamp
